Product Description

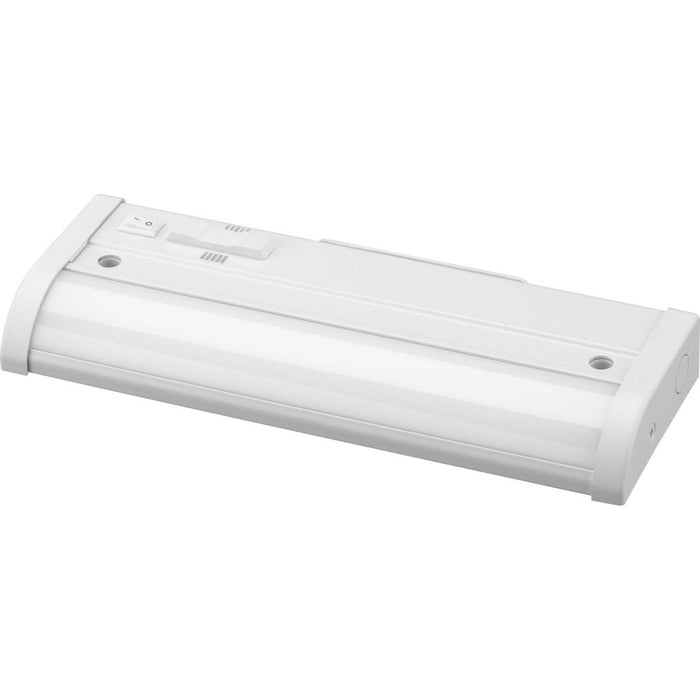

Combine elegant design with energy-efficient LED light in the Hide-A-Lite Collection 1-Light 9-Inch Satin White Modern LED Linear Undercabinet Light. The fixture's frame is coated in a crisp satin white finish. An access plate and quick connect wire connectors make installation easy. The fixture is directly wired. Two armored cable fittings are included. The 5-CCT selectable LED light engine offers flexibility in application, allowing the choice of 5 different color temperatures allowing for the best lighting color to fulfill the design intent. An on-off switch on the front allows for easy task light illumination.
Product Details
Finish: Satin White
Option: Damp Rated
Option: Energy Efficient
Option: Energy Star
Option: Prop 65
Option: Title 24
Category: Undercabinet
Style: Commodity;Contemporary;Modern;Traditional;Transitional;Utilitarian
Family: Hide-a-Lite
Number Of Bulbs: 1
Backplate Height: 0.12
Backplate Width: 8.78
Bulb Hours: 50000
Introduction Date: 01/01/2021
Kelvin: 2700
Keyword(s): Bar;Closets;Garage;Kitchen;Laundry;Pantry;Self-storage;Store Rooms;Utility;Work Areas
Length: 9.02
Lumens / Light Output: 228
Material: Aluminum
Ship Carton Height: 3.62
Ship Carton Length: 10.62
Ship Carton Width: 1.37
Ship Weight: 0.936
Special Features: Application
Vendor Ship Method: UPS
Voltage: 120
Warranty: 5-year limited
Weight: 0.61
Wire Included: 6
Americans with Disabilities Act: Yes
Backplate Depth: 3.02
Can be Mounted Up or Down: No
Color Generic: White
Construction Material: Housing
Convertible Fixture Includes both Mounts: No
Country Of Origin: China
CRI: 90
Damp Rated: Yes
Dark Sky: No
Design Series: No
Dimming Compatability: Eaton AAL06;IDevices IDEV009;Leviton 6681;Leviton IPI06-1LZ;Leviton 6672;Leviton 6674;Lutron NTEVL-300;Lutron DVELV-300P;Lutron DVCL-253P;Lutron Caseta Wireless;Lutron AYCL-153P;Lutron SCL-153P;Lutron TGCL-153-PH-WH;Lutron MACL-153M
Dimming Protocol: Triac/Forward Phase;ELV/Reverse Phase
Dimming Range: Dims to 10% Brightness
Finish Type: Painted
Frequency Rating: 60 Hz
Grounded Convenience Outlet Included: No
JA8: 2019
Lamp Type Basic: solid state
LED: Yes
Lumen per Watt: 57
Mount Location: Undercabinet
Non UPS Shippable: No
Post Top Fits Standard: No
Proposition 65 Cancer: Yes
Proposition 65 Reproductive Harm: Yes
Proposition 65 Warning Required?: Yes
Quick Install Canopy: No
Quick Link Connector: No
Room Type: Bar;Closets;Garage;Kitchen;Laundry;Pantry;Self-storage;Store Rooms;Utility;Work Areas
Safety Rating: cCSAus
Short Description: 9 LED white linear 5-CCT selectable undercabinet light
Socket Base Type: Integrated
Starting Temperature - Minimum: -25 °C
Sub Brand: Progress LED
Weight of Fixture Exceeds NEC Limits: No
Included Items
Bulbs: (1) X 4 Watt LED
