Product Description

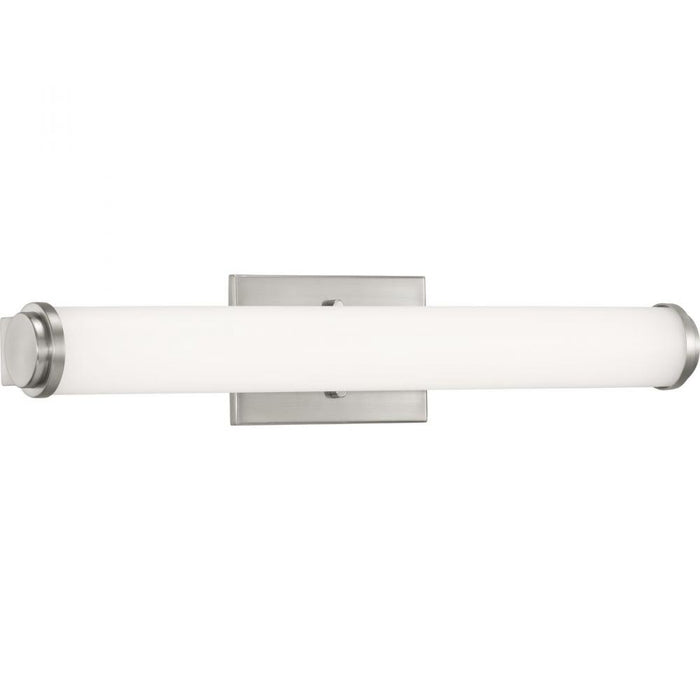

Featuring a cylindrical acrylic diffuser and a simple rectangular back plate, Phase 1.1 Collection 24in. linear bath bar accommodates residential, light commercial and multi-family applications. An integrated LED source provides uniform illumination, as well as energy and cost savings benefits. Can be installed vertically or horizontally.
Product Details
Finish: Brushed Nickel
Option: Damp Rated
Option: Energy Efficient
Option: Energy Star
Option: Prop 65
Option: Title 24
Shade: White
Category: Bath & Vanity
Style: Modern
Family: Phase 1.1 LED
Number Of Bulbs: 1
Backplate Height: 4.75
Backplate Width: 7.0625
Bulb Hours: 50000
Bulb Type: LED
Depth: 4
Diameter: 24
Introduction Date: 2019-01-01
Kelvin: 3000
Lumens / Light Output: 1675
Material: Aluminum
Ship Carton Height: 5.62
Ship Carton Length: 26.75
Ship Carton Width: 6.62
Ship Weight: 1.98
Special Features: The white cylindrical acrylic diffuser provides even illumination;Curved end caps and rectangular back plate are finished in Brushed Nickel;The LED light is diffused to create an even glow;Ideal for residential, commercial and multi-family applications;Mo
Vendor Ship Method: UPS
Voltage: 120
Warranty: 5-Year Limited Warranty
Weight: 2.69
Wire Included: 6
Americans with Disabilities Act: Yes
Backplate Depth: 0.375
Can be Mounted Up or Down: Yes
Canopy Shape: Rectangular
Color Generic: Grey
Construction Material: Construction
Convertible Fixture Includes both Mounts: No
Country Of Origin: China
CRI: 90
Damp Rated: Yes
Dark Sky: No
Design Series: No
Dimming Compatability: Lutron NTELV-300;Lutron DVELV-300P;Lutron Caseta;Leviton 6681;Lutron AYCL-153P;Lutron MAELV-600;Lutron AWRMG-EAW
Dimming Protocol: Triac/Forward Phase or ELV/Reverse Phase
Finish Type: Plated
Frequency Rating: 60
Glass Dimensions: Depth
Glass Shape: Diffuser
Height to Center: 2.38
JA8: 2016
Lamp Type Basic: solid state
Lens Shade Material: Acrylic
Long Description: The white cylindrical acrylic diffuser provides even illumination;Curved end caps and rectangular back plate are finished in Brushed Nickel;The LED light is diffused to create an even glow;Ideal for residential, commercial and multi-family applications;Mo
Lumen per Watt: 76
Mount Location: Wall
MTO: No
Non UPS Shippable: No
Operating Temprature: 30°C
Proposition 65 Cancer: Yes
Proposition 65 Reproductive Harm: Yes
Proposition 65 Warning Required?: Yes
Room Type: Bathroom
Safety Rating: cETLus
Short Description: Phase 1.1 LED 24 LED Linear Bath & Vanity
Showroom: No
Socket Base Type: LED
Starting Temperature - Minimum: -30 °C
Sub Brand: Progress LED
Weight of Fixture Exceeds NEC Limits: No
Included Items
Bulbs: (1) X 22 Watt Integrated LED
